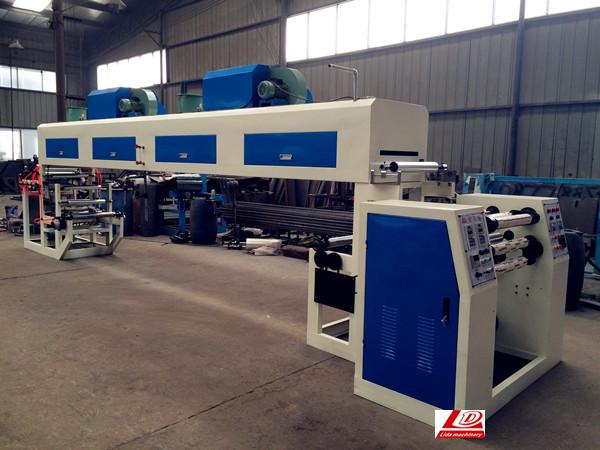

Printed BOPP adhesive packaging tape maker machine
- Brand: ???LIDA
- Type: ???LD-500A
Printed BOPP adhesive packaging tape maker machine
Single Sided Printed BOPP adhesive packaging coating tape maker machine can produce different sizes of clear tapes, printed tapes and color tapes with good quality.
Coating & Gravure printing:
Correction device & Four shafts slitting:
Technical parameters of BOPP adhesive packaging tape maker machine:
|
Coating width |
500mm, 1000mm |
Temperature control |
Max 120℃ |
|
Coating method |
Comma blade,transfer coating |
Rewinding edge flatness |
Error≤1mm |
|
Max unwinding diameter |
600mm |
Printing working width |
500mm, 1000mm |
|
Max rewinding diameter |
200mm |
Power loading |
15kw |
|
Mini rewinding width |
1 inch |
framework |
12# square steel tube |
|
Drying method |
Inbuilt water tank heated by electricity |
Coating speed |
0-40m/min |

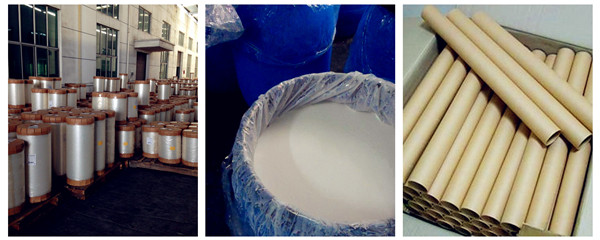

Raw material:
Production process of the BOPP adhesive packaging coating tape making machine:
Before we start the production, we need to cut the long paper core to suitable width with the paper core cutter, then we use the paper core loader to make the small paper tubes attached on the slitting shaft.
1. set the OPP film on the raw material shaft.
2. print on the film(or you don’t print).
3. glue the film.
4. dry the glue through the oven.
Finally, slit the film into small tapes or make the film into a jumbo roll.

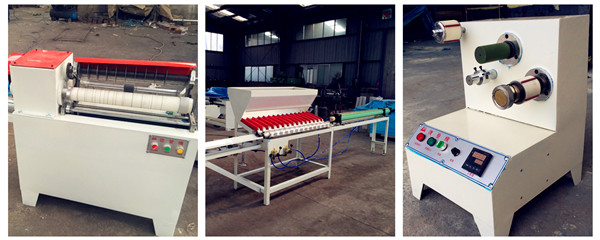

To get a complete system, maybe you will also need other three machine: core loader, core cutter and rewinder.

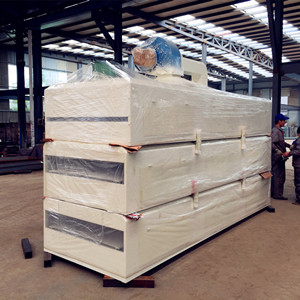

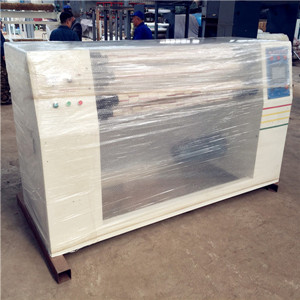

Packing type:
