Adhesive tape slitting machine
- Brand: ???Lida
- Type: ???LD-1600A
Width 1300mm, 1600mm High speed Adhesive tape slitting machine
Making bopp packing tape from cutting jumbo roll
Technical parameters of this adhesive tape slitting machine:
|
Item |
LD-500C |
LD-1000C |
LD-1300C |
LD-1600C |
|
Speed |
180m/min |
180m/min |
180m/min |
180m/min |
|
Inner core diameter |
1''--3'' |
1''--3'' |
3'' |
3'' |
|
Mini slitting width |
12mm |
12mm |
12mm |
12mm |
|
Razor size |
0.2*22*60mm |
0.2*22*60mm |
0.2*22*60mm |
0.2*22*60mm |
|
Max unwinding diameter |
800mm |
800mm |
800mm |
800mm |
|
Max rewinding diameter |
350mm |
350mm |
350mm |
350mm |
|
Power |
380V,50HZ,3HP |
380V,50HZ,5HP |
380V,50HZ,5HP |
380V,50HZ,5HP |
|
Effective working width |
500mm |
1000mm |
1300mm |
1600mm |

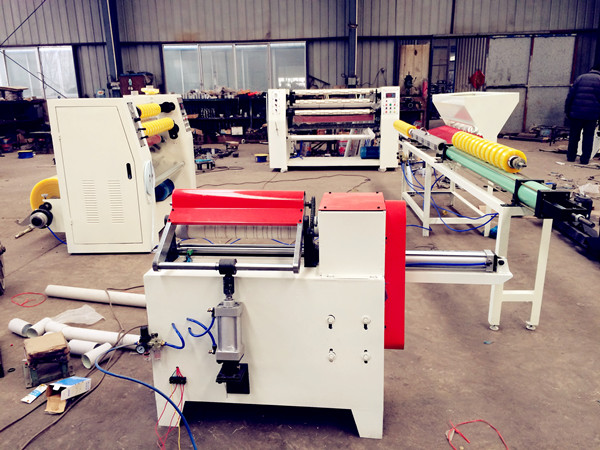

This LD-1600A adhesive tape slitting machine includes four parts: Slitting machine, core loader, core cutter and rewinder
Paper tube cutting machine: Cutting long paper core to the right size you want.
Paper tube loader: Set the paper core on the rewinding shafts.
Tape rewinder: Rewinding the imperfect tapes to good one.
Features:
1. Automatic consecutive 4-shaft changing:
when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.
2.Three-step length counter: Giving accurate pre-setting of rewinding length.
3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .
4. Automatic tension control
5. (Optional) Auto labeling and slitting stationery tape functions
6. (Optional)auto loading device for heavy jumbo roll

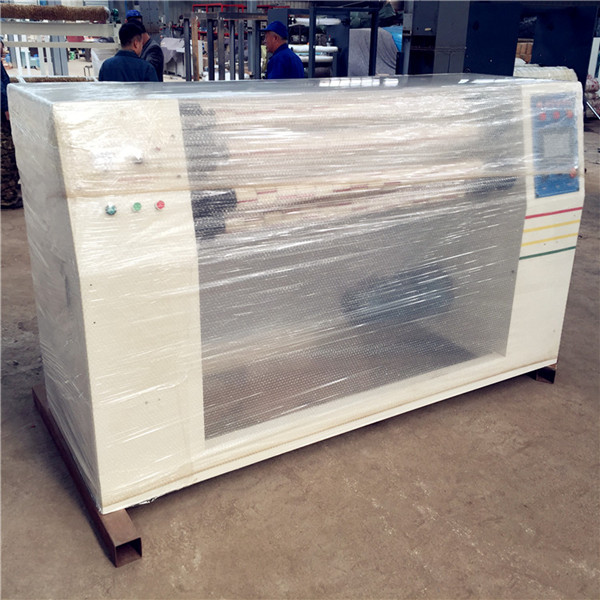

Packing:
